GE Krautkramer CL5 with Snapshot A-Scan High Precision Ultrasonic Thickness Gauge
 |
Price: US $2299.00 |
High Precision, High Resolution and High Reliability, High Reputation.
GE Krautkramer CL5
DL Ultrasonic Thickness Gauge Kit,
with probe, cable and case. Comes with: 1)

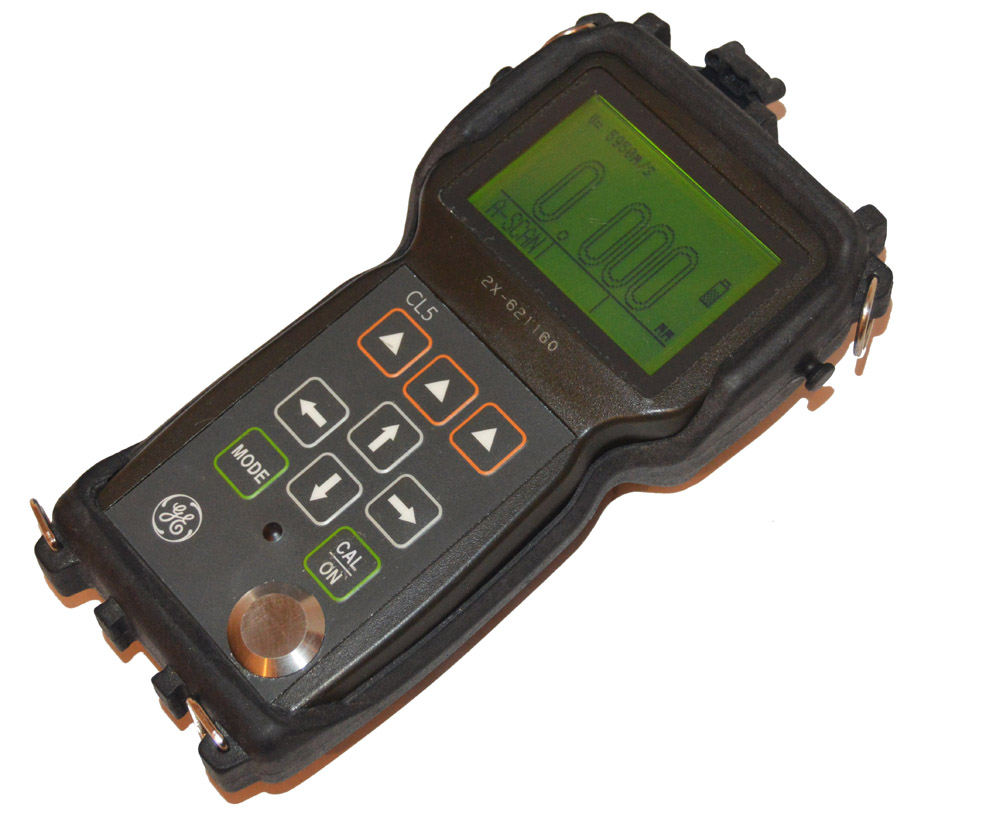

CL5 Main Unit (Snapshot A-Scan)
2) Digiwork Fingertip
Precision Probe D20M3 (20MHz Measuring Freqency and 3 mm Contact
Diameter) 3)
Lemo 00 to Microdot Cable to connect probe and tester
4 )
Digiwork Carrying Case
5)
6-Step Test Block (millimeters) with wood case (Material: 1810 Steel)
Also known as the Waygate Technologies Ultrasonic Thickness Gauge, GE Inspection Technologies Krautkramer CL5 Thickness Gauge is a 0.13mm to 500mm ultrasonic thickness gauge that offers
a resolution of 0.001 mm. CL5 thickness gauge offers several measurement
and display modes that include: Normal, Minimum Capture, Maximum Capture,
Differential and Rate of Reduction, and so on.
GE CL5 thickness gauge is designed with three soft keys directly under the unit's display which activate the functions shown on the display menus. Users can also easily place all data recordings and set-up information on a removable SD memory card.
The CL5 is used for precise thickness measurements of metal, steel and plastic components whose complex geometry often makes them difficult to inspect with conventional gauges. It is able to ensure the ultrasonic response by using the Snapshot A-Scan, and verify the accuracy of the test as components become more complex in shape. The user-friendly design of the CL5 provides intuitive operation, with easy to understand on-screen prompts, with no need for dedicated keys.
This standard is in good condition. For thickness and linearity calibration of curved surfaces.
Features
Measuring Range: 0.005 in to 20.00 in (0.13 mm to 500 mm)
Dependant on material, probe, surface condition, temperature
0.0001, 0.001, 0.01in resolution
0.03937 to 0.78736 in/μs material velocity range
2.25 X 2.56 inch display screen with backlight
Supervisor Lockout
Bi-directional serial RS-232
Baud rate 1200, 9600, 57600 & 115200 I/O
Programmable data recorder
Multi-language user interface
3 AA batteries (Alkaline, NiMH or NiCad)
Impact resistant, dust & splash proof, gasket-sealed
Case tested to IP54
|
)
)
)
)
)
)
)
