Impact Devices (Probes) for Leeb Hardness Tester
|
D, C and DC Probe: US $999.00; G Probe: US $1299.00, DL Probe: US $1299 |
The only probes that
are fully Equotip Compatible - what you need is just PLUG and PLAY.

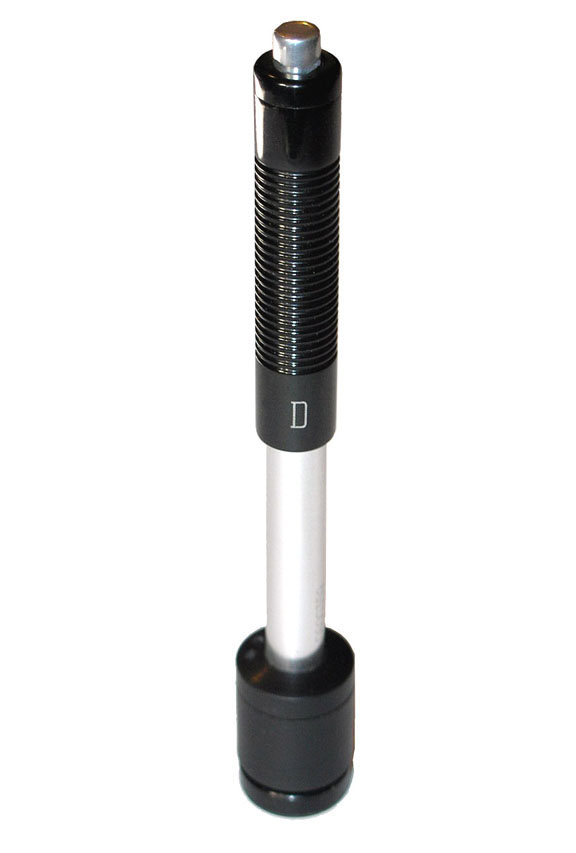

The base impact device, which supplies with most standard Leeb Hardness Tester
package, is D type. There are also
6 other impact devices (DC, D+15, DL, C, G and E) available for use in special
spaces. These devices extend the applications in special component geometry or
surface finish. Each special impact device is fully compatible with base unit
and supplied as accessories.
Technical Data
Impact Device | D | DC | D+15 | DL | C | G | E | Impact Energy (Nmm) | 11 | 11 | 11 | 11 | 3 | 90 | 11 | Length (mm) | 150 | 85 | 165 | 202 | 140 | 250 | 155 | Diameter (mm) | 20 | 20 | 20 | 20 | 20 | 30 | 20 | Weight (g) | 75 | 50 | 80 | 100 | 75 | 250 | 100 | Max hardness of sample | 940HV | 940HV | 940HV | 950HV | 1000HV | 650HB | 1200HV | Sample preparation | | Roughness Ra (um) | 2 | 2 | 2 | 2 | 0.4 | 7 | 2 | Min coupled thickness (mm) | 3 | 3 | 3 | 3 | 1 | 10 | 3 | Min thickness of layer (mm) | 0.8 | 0.8 | 0.8 | 0.8 | 0.2 | ---- | 0.8 | Min weight of compact shape (kg) | 5 | 5 | 5 | 5 | 1.5 | 15 | 5 | Min weight of solid support (kg) | 2 | 2 | 2 | 2 | 0.5 | 5 | 2 | Min weight coupled on plate (kg) | 0.1 | 0.1 | 0.1 | 0.1 | 0.02 | 0.5 | 0.1 | Indentation of test tip | | With 300HV, Diameter (mm)/depth (um) | 0.54/24 | 0.54/24 | 0.54/24 | 0.54/24 | 0.38/12 | 1.03/53 | 0.54/24 | With 800HV, Diameter (mm)/depth (um) | 0.35/10 | 0.35/10 | 0.35/10 | 0.35/10 | 0.30/7 | ---/--- | 0.35/10 | Fields of applications | | Steel and cast steel | HV | 80-940 | 80-937 | 80-950 | 80-996 | ---- | 84-1027 | HB | 80-647 | 80-638 | 81-646 | 80-683 | 90-646 | 84-656 | HRB | 38.4-99.5 | ---- | 37.0-99.9 | --- | 47.7-99.9 | ---- | HRC | 20.0-68.0 | 19.3-67.9 | 20.6-68.2 | 20.0-69.5 | ---- | 21.9-70.5 | HSD | 32.5-99.5 | 33.3-99.3 | 30.6-96.8 | 31.9-102.3 | ---- | 35.5-102.8 | Alloy tool steel | HV | 80-898 | 80-935 | ---- | 100-941 | ---- | 83-1009 | HRC | 20.4-67.1 | 19.8-68.2 | ---- | 20.7-68.2 | ---- | 22.2-70.2 | Stainless steel | HV | 85-802 | ---- | ---- | ---- | ---- | ---- | HB | 85-655 | ---- | ---- | ---- | ---- | ---- | HRB | 46.5-101.7 | ---- | ---- | ---- | ---- | ---- | HRC | 19.6-62.4 | ---- | ---- | ---- | ---- | ---- | Grey cast iron | HB | 93-334 | ---- | ---- | ---- | 92-328 | ---- | Spheroidal iron | HB | 131-387 | ---- | ---- | ---- | 127-364 | ---- | Cast aluminium | HB | 20-159 | ---- | ---- | ---- | ---- | ---- | Brass | HB | 40-173 | ---- | ---- | ---- | ---- | ---- | HRB | 13.5-95.3 | ---- | ---- | ---- | ---- | ---- | Bronze | HB | 60-290 | ---- | ---- | ---- | ---- | ---- | Wrought Copper | HB | 45-315 | ---- | ---- | ---- | ---- | ---- |
|
